Vocal Tuning

Mixer Audio Settings

Yamaha TF5 - High Pass Filters

  • Men: 80-100Hz
  • Women: 100-150Hz

Yamaha TF5 - EQ

  • 1-Knob EQ - Vocal Mode
  • Automatic EQ w/ HPF for vocal ranges (40-100)
  • Video Resource 1
  • Video Resource 2
  • 1-Knob EQ - Intensity Mode
  • Affects amount of effect for any set EQ points

Yamaha TF5 - Compressor

  • 1-Knob Compressor
  • Keep subtle to remove peaks and boost lows (~50, 2.0:1-2.5:1)
  • Video Resource

Shure SLX1 Wireless Mics

Check wiring and connections before each use.

Countryman Headsets

TA4F Connector - Mini XLR 4 Pin

Pin 1: Shield
Pin 2: Bias (+5Vdc)
Pin 3: Audio
Pin 4: Bias return - 20 k Ohm resistor to ground or equivalent active bias management circuit
(Jumpered to pin 3 when used with most condenser microphones)

The pictorial shows the pin layout of a TA4F connector, as viewed from the wiring side. If you use a bright light and look at the female connector (TA4F) used for the cable, you will see numbers next to each hole. The TA4F cable end connector can be purchased as Shure Part WA330.

Applications: * Condenser Microphones - Shure WH30, PG30, WL18x, WL50, WL51, WL93, etc. * Connect audio lead (black) to pins 3 and 4 Connect bias lead (red) to pin 2 Connect shield to pin 1 and connector body (use cable clamp insert piece as the connector body terminal)

Replacement cable for countryman mics (threaded mic end, TA4F connector to transmitter)

Pyle-Pro mic headset as a low-cost alternative for the countryman headsets

Look at Microphone Madness

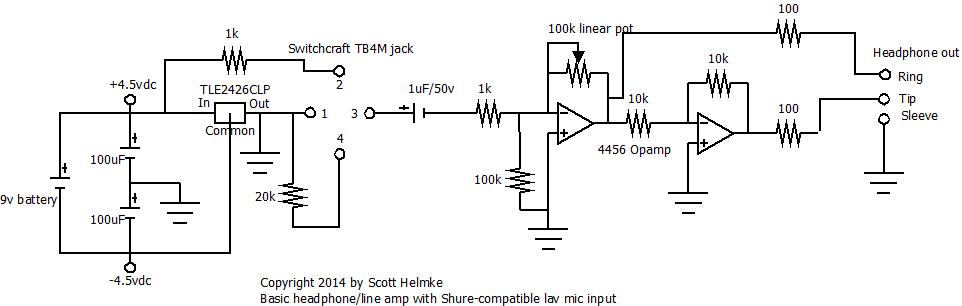

Lav Tester / Preamp
